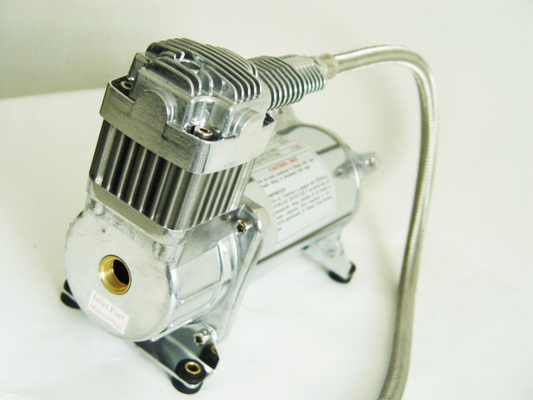

Chrome Remote Air Filter Air Bag Air Ride Suspension Compressor Pump150psi 1 Year Warranty
  • Chrome Remote Air Filter Air Bag Air Ride Suspension Compressor Pump150psi 1 Year Warranty

Chrome Remote Air Filter Air Bag Air Ride Suspension Compressor Pump150psi 1 Year Warranty

Place of Origin CHINA
Brand Name N / M
Certification CE&ROHS
Model Number YF6470R
Product Details
Material:
Chrome
Color:
Chrome
Brand:
OEM
Origin:
China
Voltage:
12V
Power:
Heavy Duty
Moisture Resistant:
IP67
Application:
On-board Air System, Car Tuning, Off-board Car
High Light:

air ride air compressor

,

air bag suspension compressor

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Can be discussed
Packaging Details
First wrapped with high-quality carrying bag, then with color box, finally Strong Carton
Delivery Time
30 days after receiving 30% deposit
Payment Terms
T/T, L/C
Supply Ability
4500pcs per month
Product Description

Yurui Chrome Remote Air Filter 6470R 150psi Air Ride Suspension 1 Year Warranty





► Description



YF6470R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.

Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.



► Used with



Air tanks in different sizes

Pneumatic system

Air horns





► Our Advantages



1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust and explosion-proof

7 . Water resistant : IP 67, working in the water for 2 hours






► SPECIFICATION



2.48CFM 150PSI



• 12 Volt

• Duty Cycle: 33% @ 100 PSI

• Max. Working Pressure: 150 PSI

• 12V Max. Amp Draw: 32Amps

• 1/4"NPT Inlet port

• Net Weight: 8.2 lbs

9.45"Lx4"Wx6.85"H



► PERFORMANCE DATA



PSI 0 40 90 150
AMPS 17 25 28 26
CFM 2.48 1.82 1.4 0.9
LPM 70 51 40 26
BAR 0 3 6 10





RECOMMENDED TANKChrome Remote Air Filter Air Bag Air Ride Suspension Compressor Pump150psi 1 Year Warranty 0

TANK FILL DATA



2.0 Gallon Tank

0 to 150 psi 2 min 02 sec

120 to 150 psi 40 sec


♦ DUTY CYCLE REFERENCE CHART

Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72F





Chrome Remote Air Filter Air Bag Air Ride Suspension Compressor Pump150psi 1 Year Warranty 1
