| Brand Name: | OEM |
| Model Number: | YF6469R DUAL |
| MOQ: | Negotiation |
| Price: | Ask For Advice |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000pcs per month |
YURUI YF6469R DUAL Pack For Cars Strong Power Heavy Duty Remote Fast Inflation
►About us:
We only produce & export the lelatively high-end products to the world. We have gained acceptance by many countries’s friends, we have distributors in USA Austral, Russia, Poland Germany and so on.
The quality is most we focus on, I think the best quality is the main reason we can survive so long time, not only because we strictly control the quality in the production, but also we check the quality after the production among the ready goods.
Any kind of inspection is welcomed, we welcome you all come and have a look.
► SPERCIFICATIONS
3.5 CFM 200PSI
12 Volt
Duty Cycle:100% @ 100PSI
Duty Cycle:50% @ 200PSI
Max Working Pressure :200PSI
Max Amp Draw: 42Amps
1/4”NPT Inlet port
Net Weight:21.6lbs
P/N 11”Lx4”Wx6.85”H

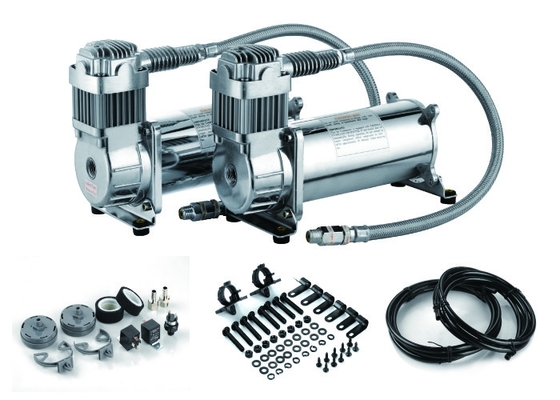

► PARTS INCLUDED
(2) YF6469 Compressors
(2) Air Filter Assemblies
(2) Leader Hose Clips
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Air Line Clips with Included Hardware
(2) Sets of Nuts Bolts Washers and Lock Washers
(2) Heavy Duty 40Amp Relays
(1) One Heavy Duty Pressure Switch(165psi on, 200psi off)
Air Line(For Remote Mount Filter Installation)
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 | 200 |
| AMPS | 24 | 32 | 38 | 34 | 30 |
| CFM | 3.5 | 2.7 | 2.18 | 1.6 | 1.12 |
| LPM | 100 | 76 | 62 | 45 | 32 |
| BAR | 0 | 3 | 6 | 10 | 14 |
► TANK FILL DATA
2.5 Gallon Tank
0 to 200 psi 2 min 35 sec
150 to 200 psi 45 sec
5.0 Gallon Tank
0 to 200 psi 5 min 45 sec
150 to 200 psi 1 min 50 sec
► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
►How to guarantee your after sales service?
1. We check every item’s quality during the production
2. Recheck the products before shipment to ensure our packaging in good condition.
3. Track and receive feedback from our customer.
►What will you do for the customer’s complaint?
We will response quickly to our client within 24 hours, every issue will be highly focused on.
