Air Ride Suspension Compressor
>
|
| Place of Origin | CHINA |
| Brand Name | OEM |
| Certification | CE |
| Model Number | YF6456R DUAL |
YURUI YF6456R DUAL Heavy Duty Strong Power Remote Very Fast Inflation
►Company information:
Yuyao Yurui Electrical is a professional factory dealing in the suspension air compressor, inflator, car fan vacuum cleaners, heater fans and other car accessories. With more than 15 years history, we have our own inspection team that is around 15 persons and engineers 3 persons. That controls the quality and explore new products.
3.5 CFM 200PSI
► SPECIFICATIONS
12 Volt
Duty Cycle:100% @ 100PSI
Duty Cycle:50% @ 200PSI
Max Working Pressure :200PSI
Max Amp Draw: 45Amps
3/8”NPT Inlet port
Net Weight:22lbs
P/N 11”Lx4”Wx6.55”H

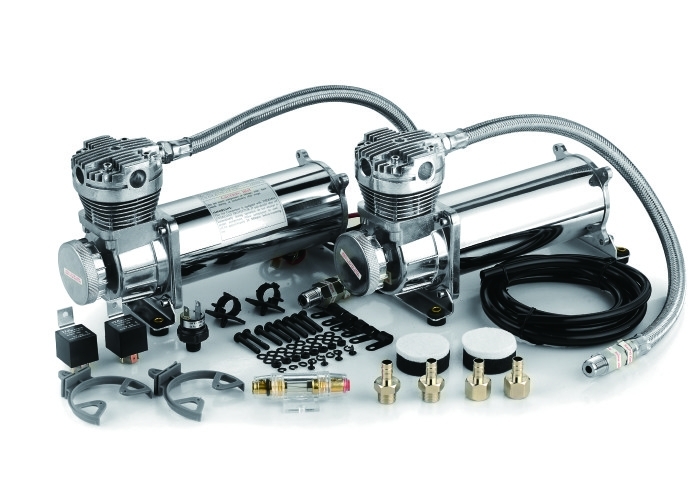

►P ARTS INCLUDED
(2) YF6456 Compressors
(2) Air filter Assemblies
(2) Leader Hose Clips
(2) Remote Mount Brackets
(2) Sets of Remote Mount Fittings
(2) Air Line Clips with Included Hardware
(2) Sets of Nuts Bolts Washers and Lock Washers
(2) Heavy Duty 40Amp Relays
(1) One Heavy Duty Pressure Switch(165psi on, 200psi off)
Air Line(For Remote Mount Filter Installation)
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 | 200 |
| AMPS | 24 | 34 | 38 | 40 | 38 |
| CFM | 3.5 | 2.7 | 2.2 | 1.6 | 1.2 |
| LPM | 100 | 78 | 62 | 46 | 33 |
| BAR | 0 | 3 | 6 | 10 | 14 |
► TANK FILL DATA
2.5 Gallon Tank
0 to 200 psi 2 min 30 sec
150 to 200 psi 40 sec
5.0 Gallon Tank
0 to 200 psi 5 min 10 sec
150 to 200 psi 1 min 30 sec
► Our Advantages
1 . Competitive price than other manufactures
2 . Portable to carry with
3 . Fast inflation and low noise
4 . Can be pumped more than 20 , 000 times
5 . Anti-dust
►How to guarantee your after sales service?
1. We check every item’s quality during the production
2. Recheck the products before shipment to ensure our packaging in good condition.
3. Track and receive feedback from our customer.
►What will you do for the customer’s complaint?
We will response quickly to our client within 24 hours, every issue will be highly focused on.
►Remarks:
1. Therms of payments, T/T, L/C.
2. 30% deposit, 70% balance before shipment or against B/L. (small order, should ask 100% advanced, it can be discussed.)
3. Date of shipment, within 20-30 days after we received your deposit. Details should depend on Qty and the production line.
4. Unit price could be discussed depends on the qty
5. We can offer OEM service.
