Heavy Duty Dual High Output Air Compressor Air Systems With 2.5 Gallon Tank 12v Air Compressor

Heavy Duty Dual High Output Air Compressor Air Systems With 2.5 Gallon Tank 12v Air Compressor

Brand Name: OEM
Model Number: YF7011
MOQ: Negotiation
Price: Ask for advice
Payment Terms: T/T, L/C
Supply Ability: 5000pcs per month
Detail Information
Place of Origin:
CHINA
Certification:
CE
Voltage:
12V
Brand:
OEM
Original:
CHINA
Price:
Competitive
Power:
Heavy Duty
Moisture Resistant:
IP67
Delivery:
20-30 Days After Received Your Deposit
Packaging Details:
Box with foam and strong carton
Supply Ability:
5000pcs per month
Highlight:

on board air compressor

,

air compressor kit

Product Description

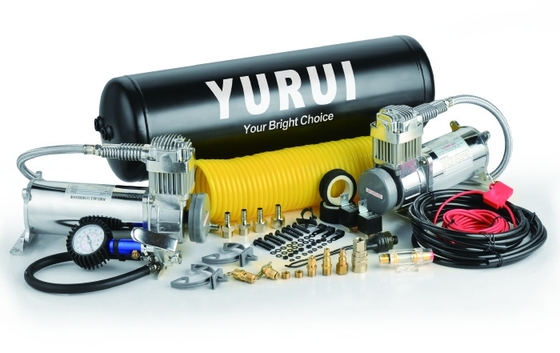

Heavy Duty YURUI Dual YF7011 Onboard Air System 2.5 Gallon Tank 200 PSI Strong





► Description



YuRui’s Dual YF6469R Onboard Air System is a pre-packaged compressed air solution that provides two YF6469R,100% duty cycle compressors ,a 2.5 gallon air tank,inline pressure regulation,and all components needed to install a working system capable of inflating tires,managing air locking differentials,and more.





About us:



We only produce & export the lelatively high-end products to the world. We have gained acceptance by many countries’s friends, we have distributors in USA Austral, Russia, Poland Germany and so on.

The quality is most we focus on, I think the best quality is the main reason we can survive so long time, not only because we strictly control the quality in the production, but also we check the quality after the production among the ready goods.

Any kind of inspection is welcomed, we welcome you all come and have a look.





Our Advantages





1 . Water resistant : IP 67, working in the water for 2 hours

2 . Fast inflation and low noise

3 . Can be pumped more than 20 , 000 times

4 . We can offer best suggestion on the design

5 . Reliable quality, long working lif

6 . Anti-dust and explosion-proof








YF7011

3.5CFM 200 PSI

P/N 7011







► PARTS INCLUDED

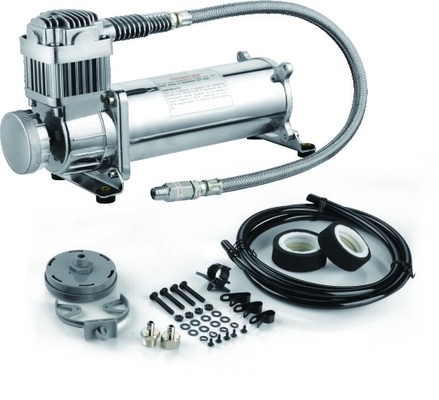

(2)YF6469R Air Compressor

12 Volt

Duty Cycle:100%@100 PSI

System Max Working Pressure:200 PSI

Max Amp Draw:42 Amps

2.5Gallon Air Tank

Accessory Airline

Pressure Switch(120PSI on 150 PSI off)

(2)40amp Relay

1/4”NPT Drain Cock

1/4”NPT250PSI Safety Valve

1/4”NPT Quick Connect Stud(F)

1/4”NPT Quick Connect Coupler(M)

(2 ) 8ft Air Hose

25IL Air Hose

Tire Pressure gun

20ft 12 Gauge Wire with Inline Fuse Holder

Electrical Connections





► PERFORMANCE DATA



PSI 0 40 90 150 200
CFM 3.5 2.7 2.18 1.6 1.12
AMPS 24 32 38 34 30
LPM 100 76 62 45 32
BAR 0 3 6 10 14





► TANK FILL DATA



2.5 Gallon Tank

0 to 200 psi 2 min 35 sec

150 to 200 psi 45 sec








► DUTY CYCLE REFERENCE CHART





Duty Cycle: 100PSI @ 72◦F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72◦F
