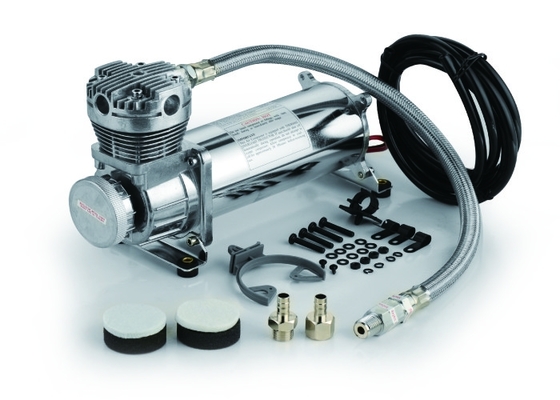

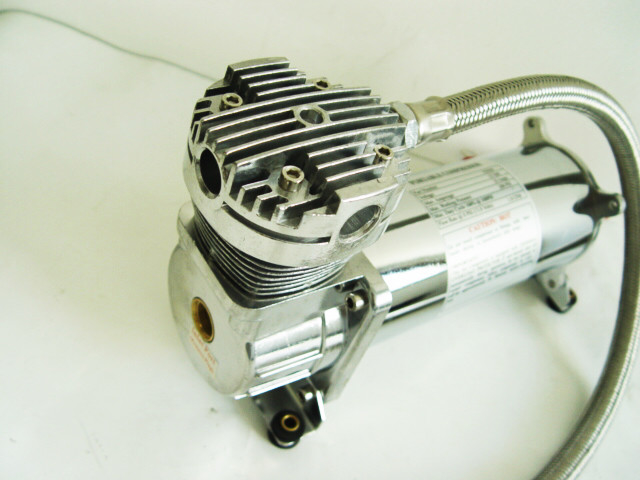

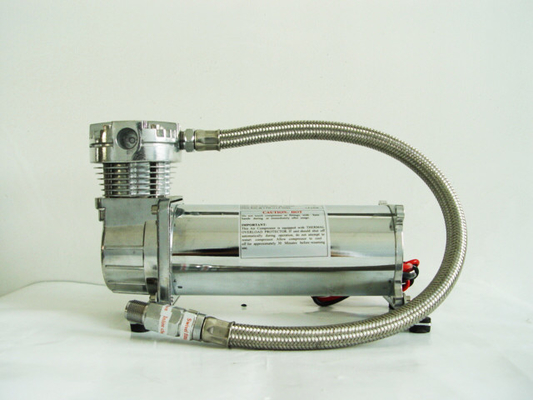

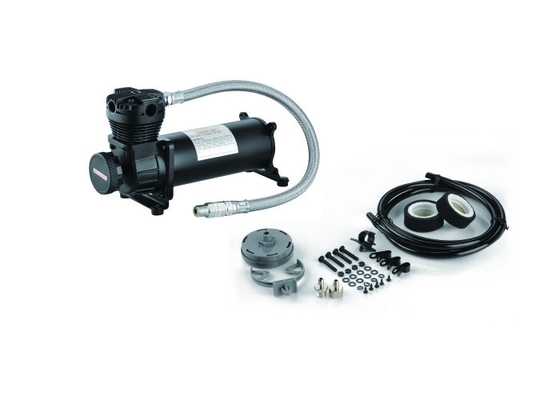

200psi 12 Volts Air Ride Suspension Compressor Stainless Lead Hose 5 Gallon Air Compressor

200psi 12 Volts Air Ride Suspension Compressor  Stainless Lead Hose 5 Gallon Air Compressor
200psi 12 Volts Air Ride Suspension Compressor  Stainless Lead Hose 5 Gallon Air Compressor 200psi 12 Volts Air Ride Suspension Compressor  Stainless Lead Hose 5 Gallon Air Compressor 200psi 12 Volts Air Ride Suspension Compressor  Stainless Lead Hose 5 Gallon Air Compressor 200psi 12 Volts Air Ride Suspension Compressor  Stainless Lead Hose 5 Gallon Air Compressor

Large Image :  200psi 12 Volts Air Ride Suspension Compressor Stainless Lead Hose 5 Gallon Air Compressor

Product Details:
Place of Origin: CHINA
Brand Name: N / M
Certification: CE&ROHS
Model Number: YF6456R
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Consultation
Packaging Details: Bubble Bag with Foam, Color box and Strong Carton
Delivery Time: One month after receiving 30% deposit
Payment Terms: T/T, L/C
Supply Ability: 4000pcs 30 days

200psi 12 Volts Air Ride Suspension Compressor Stainless Lead Hose 5 Gallon Air Compressor

Description
Brand: OEM Material: Chrome
Voltage: 12V Color: Silver
Origin: China Moisture Resistant: IP67
Condition: Brand New Warranty: 12 Months
High Light:

air bag suspension compressor

,

air ride compressor and tank

Yurui 6456R Black Or Silver 200psi 12V Stainless Lead Hose Air Ride Suspension Compresssor





► Description



YF6456R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation.

It is commonly used with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It will automatically turn on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation. One thing needed to bring out is that this product is very popular in the USA and Brazil.





► Used with



Air tanks in different sizes

Pneumatic system

Air horns



► Our Advantages



1 . One year warranty

2 . Competitive price among manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Water proof : Can work in the water for 2 hours

7 . Anti-dust and explosion-proof






► SPECIFICATION



1.8CFM 200PSI



• 12 Volt

• Duty Cycle: 100% @ 100 PSI

• Duty Cycle: 50% @ 200 PSI

• Max. Working Pressure: 200 PSI

• 12V Max. Amp Draw: 23 Amps

• 3/8"NPT Inlet port

• Net Weight: 11 lbs

11"Lx4"Wx6.55"H






PERFORMANCE DATA

PSI 0 40 90 150 200
AMPS 11 17 21 22 19
CFM 1.8 1.34 1.05 0.74 0.56
LPM 51 38 30 21 16
BAR 0 3 6 10 14



► RECOMMENDED TANK200psi 12 Volts Air Ride Suspension Compressor  Stainless Lead Hose 5 Gallon Air Compressor 0

TANK FILL DATA



2.5 Gallon Tank

0 to 200 psi 4 min 58 sec

150 to 200 psi 1 min 50 sec



5.0 Gallon Tank

0 to 200 psi 10 min 10 sec

150 to 200 psi 2 min 50 sec







About us:



We only produce & export the lelatively high-end products to the world. We have gained acceptance by many countries’s friends, we have distributors in USA Austral, Russia, Poland Germany and so on.

The quality is most we focus on, I think the best quality is the main reason we can survive so long time, not only because we strictly control the quality in the production, but also we check the quality after the production among the ready goods.

Any kind of inspection is welcomed, we welcome you all come and have a look.










♦ DUTY CYCLE REFERENCE CHART





Duty Cycle: 100PSI @ 72F Max. Run Time / Min. Rest Time



Duty cycle refers to the amount of time compressor can be operated in a given time period at 100PSI and a standard ambient temperature of 72◦F. Duty cycle is commonly expressed in percentage format as: Compressor on time / (on time + off time)= Duty Cycle%

9% Duty Cycle 3 Min. On / 30 Min. Off
10% Duty Cycle 3 Min. On / 30 Min. Off
15% Duty Cycle 6 Min. On / 30 Min. Off
20% Duty Cycle 8 Min. On / 30 Min. Off
25% Duty Cycle 10 Min. On / 30 Min. Off
30% Duty Cycle 13 Min. On / 30 Min. Off
33% Duty Cycle 15 Min. On / 30 Min. Off
40% Duty Cycle 20 Min. On / 30 Min. Off
100% Duty Cycle Continous Duty @ 100PSI @ 72
